Tuya Smart Life: Types of Gateways and Internet of Things (IoT) Devices

Lecture



Tuya Smart Life — is a universal platform for managing smart devices via a mobile app. It supports hundreds of brands and allows you to combine sensors, bulbs, sockets, cameras and other gadgets into a single automation system.

Main Categories of Tuya Smart Life Devices

Here are the key types of devices that can be connected to the Smart Life app:

1. Lighting

  • Smart bulbs (RGB, dimmable, with adjustable colour temperature)

  • Light fixtures, strips, spotlights

  • Brightness, colour and schedule control

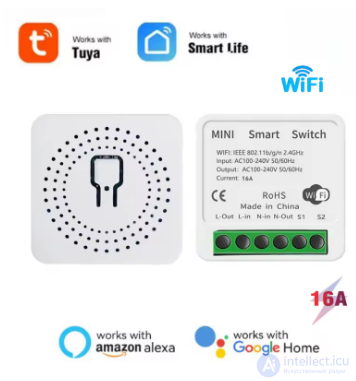

2. Sockets and Relays

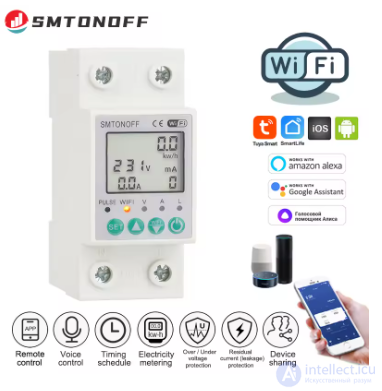

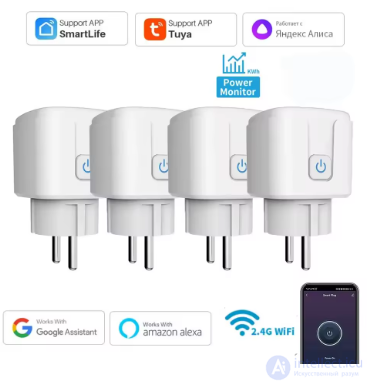

  • Wi-Fi sockets with timer and energy monitoring

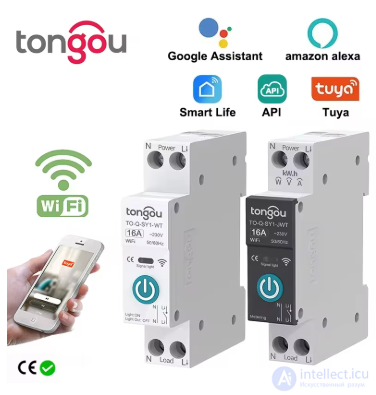

  • DIN-rail relays for distribution boards

  • Relays for controlling lighting, ventilation, heating

Tuya Smart Life: Types of Gateways and Internet of Things (IoT) Devices Tuya Smart Life: Types of Gateways and Internet of Things (IoT) Devices Tuya Smart Life: Types of Gateways and Internet of Things (IoT) Devices

Tuya Smart Life: Types of Gateways and Internet of Things (IoT) Devices

3. Climate Control

  • Thermostats for boilers, underfloor heating, radiators

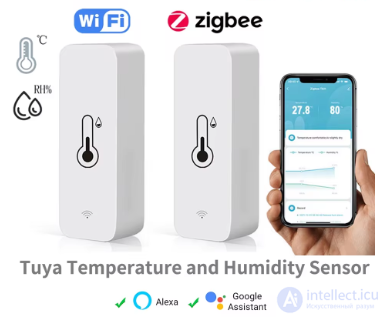

  • Temperature and humidity sensors

  • Smart fans and air conditioners with IR control

Tuya Smart Life: Types of Gateways and Internet of Things (IoT) Devices Tuya Smart Life: Types of Gateways and Internet of Things (IoT) Devices

4. Security

  • Motion sensors (microwave and PIR), door/window opening sensors

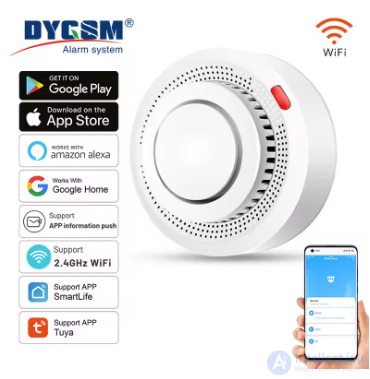

  • Smoke, gas, CO2 sensors

  • Sirens and emergency alerting devices

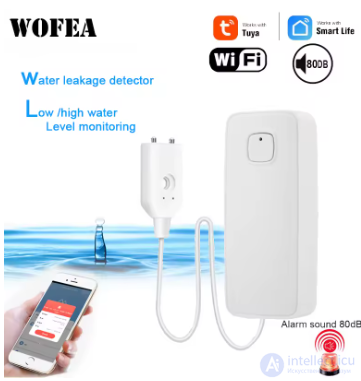

  • Leak and flood sensor

Tuya Smart Life: Types of Gateways and Internet of Things (IoT) Devices Tuya Smart Life: Types of Gateways and Internet of Things (IoT) Devices Tuya Smart Life: Types of Gateways and Internet of Things (IoT) Devices Tuya Smart Life: Types of Gateways and Internet of Things (IoT) Devices

5. Video Surveillance and Intercoms

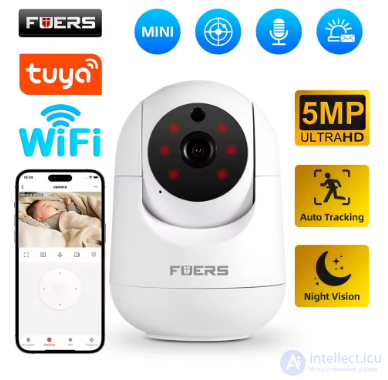

  • IP cameras with cloud storage support

  • Video intercoms with touch screens

  • Call panels integrated with Smart Life

Tuya Smart Life: Types of Gateways and Internet of Things (IoT) Devices

6. Access Control

  • Smart locks with Bluetooth/Wi-Fi

  • RFID readers, keypad panels

  • Automated door and gate opening

7. Home Appliance Control

  • IR remotes for TVs, air conditioners, audio systems

  • Smart switches and speed controllers

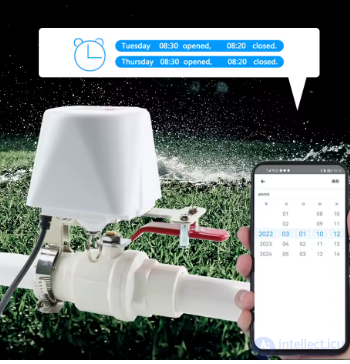

  • Automation of turning devices, taps on/off

Tuya Smart Life: Types of Gateways and Internet of Things (IoT) Devices

Main Types of Tuya Gateway

Tuya Gateway — is a central device that connects smart devices (sensors, switches, bulbs, etc.) to the Tuya cloud and the Smart Life app. It ensures stable operation, automation and device management, especially for devices using protocols other than Wi-Fi (for example, Zigbee, Bluetooth, Matter).

Tuya's smart gateway solutions offer comprehensive smart services, including gateway hardware, cloud services, apps and a development platform, expanding the capabilities of manufacturers, brands and solution integrators. Enterprises get a reliable foundation for expanding smart hardware systems. The solution interacts with Tuya's commercial SaaS solutions such as Smart Security, Tuya Apartment, Tuya Hotel and Tuya Commercial Lighting. Thanks to smart interconnections, you will discover more smart capabilities.
Tuya Smart Life: Types of Gateways and Internet of Things (IoT) Devices

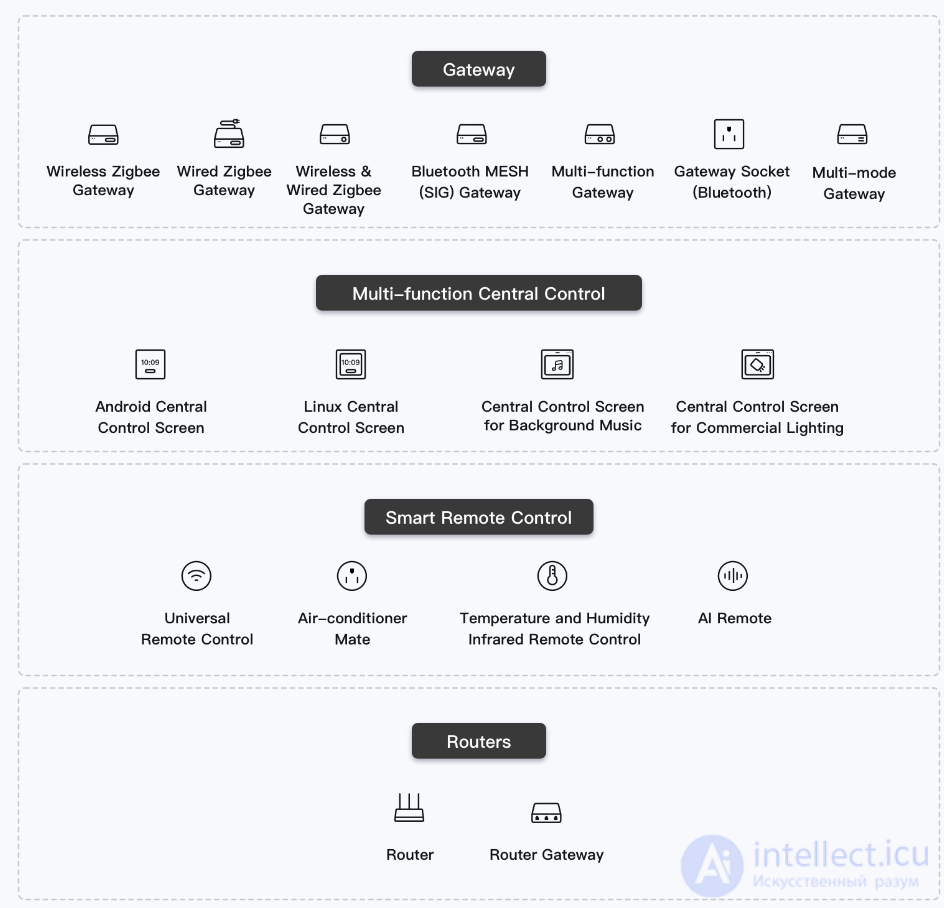

Figure Gateway Solution Matrix

Tuya offers several types of gateways, each supporting different protocols and use cases:

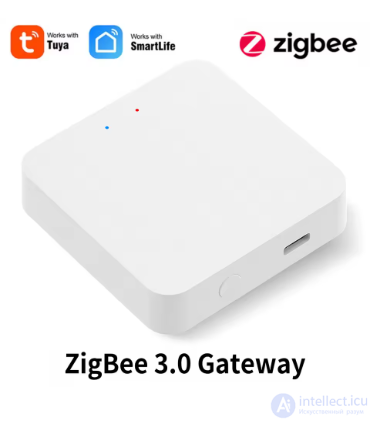

1. Zigbee Gateway

  • Connects devices operating on the Zigbee 3.0 protocol.

  • Distinguished by high stability, low power consumption and fast response.

  • Supports up to 50–100 devices.

  • Ideal for motion sensors, door sensors, smart sockets and bulbs.

The terminal device controlled by the gateway is a Tuya ZigBee product, while a device with only Tuya WiFi does not belong to this type of product.

The Tuya ZigBee gateway supports Tuya ZigBee sub-devices.

Tuya Smart Life: Types of Gateways and Internet of Things (IoT) Devices

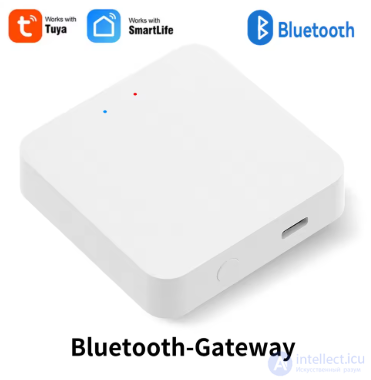

2. Bluetooth Gateway

  • Allows remote control of Bluetooth devices via the cloud.

  • Suitable for smart locks, thermometers, fitness devices.

  • Often integrated into other devices (for example, smart speakers).

The terminal device controlled by the gateway is a Tuya Bluetooth product, while a device with only Tuya WiFi does not belong to this type of product.

The Tuya Bluetooth gateway supports Tuya Bluetooth sub-devices.

Tuya Smart Life: Types of Gateways and Internet of Things (IoT) Devices

3. Wi-Fi Gateway

  • Some Tuya devices use Wi-Fi directly, but there are gateways that combine Wi-Fi with other protocols. Such devices are hard to find in official stores

4. Infrared (IR) Gateway

  • Emulates a remote control.

  • Controls home appliances: TVs, air conditioners, audio systems.

  • Supports more than 4000 brands thanks to a cloud code database.

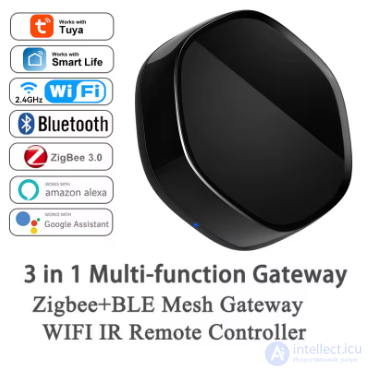

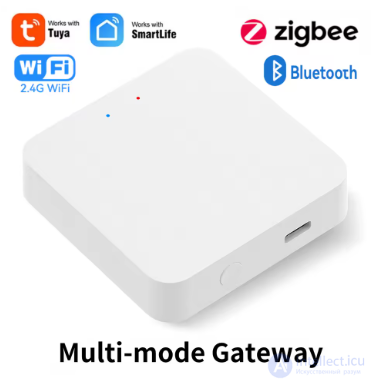

5. Multi-Protocol Gateway

  • Supports several protocols at once: Zigbee, Bluetooth, IR.

  • Ideal for comprehensive smart home solutions.

  • Allows creating automation scenarios between different types of devices.

Tuya Smart Life: Types of Gateways and Internet of Things (IoT) Devices Tuya Smart Life: Types of Gateways and Internet of Things (IoT) Devices

Tuya Smart Life: Types of Gateways and Internet of Things (IoT) Devices

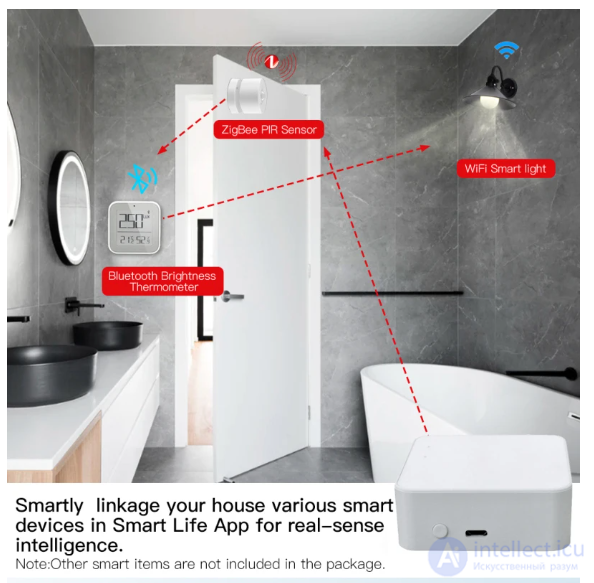

The multi-mode gateway supports Tuya ZigBee Bluetooth sub-devices.

Wi-Fi is used only to connect the gateway itself to the internet, not the devices. Tuya WiFi sub-devices or WiFi sub-devices are not supported.

Wireless connection: supports only 2.4 GHz WiFi connection

6. Matter Gateway (new)

  • Compatible with the new universal Matter protocol.

  • Ensures compatibility between devices from different manufacturers.

  • Supports local scenarios without an internet connection.

Additional Functions of Tuya Gateways

  • Automatic synchronization of SSID and password when changing routers.

  • Local scenarios — work even without internet.

  • Remote log access for diagnostics and support.

  • Cloud IR code database — updated in real time

Control via the Smart Life App and Scenarios

All Tuya gateways integrate with the Smart Life app, which allows you to:

  • Add and configure devices.

  • Create automations and scenarios.

  • Control by voice via Alexa, Google Home, Siri.

  • Receive notifications and remotely monitor your home.

All Tuya devices are controlled via the Smart Life app, which allows you to:

  • Configure scenarios and automation

  • Receive notifications

  • Control by voice via Alexa, Google Assistant, Siri

  • Group devices into groups and rooms

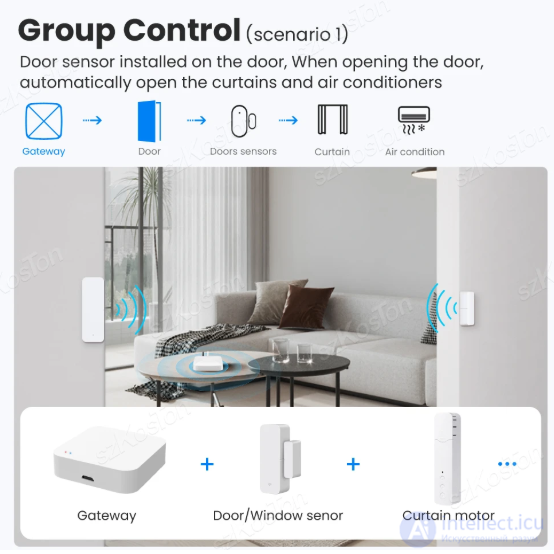

Scenarios and Automation

  • Devices can respond to:

    • Time of day (sunrise/sunset)

    • Weather (rain, wind, temperature)

    • User location

    • Status of other devices (for example, turning on lights on motion)

Tuya Smart Life: Types of Gateways and Internet of Things (IoT) Devices

Conclusion

The Tuya Smart Life ecosystem covers virtually every aspect of the smart home — from lighting and security to climate control and video surveillance. Thanks to the platform's versatility, you can start with a single device and gradually expand the system, creating a comfortable and secure environment.

Tuya offers flexible and scalable smart home solutions. The choice of gateway depends on the type of devices you want to connect and on the usage scenarios. For stable operation and expanded automation capabilities, it is recommended to use Zigbee or multi-protocol gateways.
