Types and kinds of software testing. Testing levels and testing methods

Software testing — the process of investigating, testing a software product, whose purpose is to check the correspondence between the actual behavior of the program and its expected behavior on a finite set of tests, chosen in a certain way.

Software testing = the process of investigating/testing software, whose purpose is to check the correspondence between the actual and expected behavior of the software on a finite set of tests, chosen in a certain way (ISO/IEC TR 19759:2005).

The purpose of testing or the purpose of developing and executing tests:

• to clear the software of errors to an acceptable level (you cannot provide 100% coverage, but you must do everything possible and make sure that obvious errors are fixed);
• to make sure that the software meets the original requirements and specification;

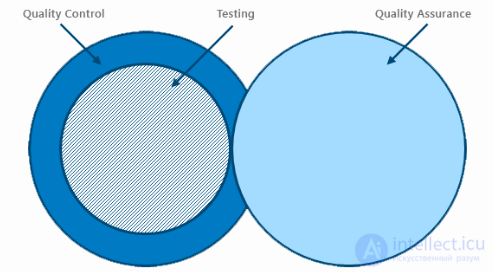

fig. 1 TESTING: QC AND QA

The task of QC (Quality Control) -- controlling and recording the quality of the artifacts produced, intermediate and final results of the work. Its purpose is to look for defects and ensure they are fixed. Thus testing is an integral part of quality control.
The term Verification fits very well here, with the question "Are we building the product right?" - are we building the product correctly, checking compliance with plans, specifications, design, coding standards, passing test cases. We check CORRECTNESS.

QA (Quality Assurance) = the part of quality management focused on creating and configuring processes, the goal of which is to provide assurance that the quality requirements will be met (the product will meet the customer's quality expectations).
It consists of processes/activities aimed at ensuring the quality of product development at each of its stages. These activities generally precede product development and continue while the process is in a state of development. QA itself is responsible for developing and implementing processes and standards to improve the software development life cycle (SDLC), and for providing confidence that these processes are being followed. The focus of QA is preventing defects at every stage of its implementation and continuously improving it.
It deals with questions such as "what kinds and methods of testing will we use?", "how will we measure quality?" and so on.
The term Validation fits very well here, with the question "Are we building the right product?" - is the product we are building the right one, does the product satisfy the needs of the user. We check COMPLETENESS.

For the services provided to have value, testing needs to be aimed at checking functions that:

• matter to the Customers/Users
• affect the user's opinion of working with the system
• reduce potential cost risks

Definitions of testing

At different times and in various sources, testing has been given various definitions, including:

• the process of executing a program with the purpose of finding errors ;
• an intellectual discipline aimed at obtaining reliable software without excessive effort spent on verifying it ;
• a technical investigation of a program to obtain information about its quality from the point of view of a certain circle of stakeholders (C. Kaner );
• checking the correspondence between the actual behavior of the program and its expected behavior on a finite set of tests, performed in a certain way ;
• the process of observing the execution of a program under special conditions and, on that basis, forming an assessment of some aspects of its operation ;
• a process aimed at identifying situations in which the behavior of the program is incorrect, undesirable, or does not conform to the specification ;
• a process that includes all life-cycle activities, both dynamic and static, concerned with planning, preparation and evaluation of a software product and its related work products, with the aim of determining that they meet the stated requirements, demonstrating that they are fit for the stated purposes, and for detecting defects

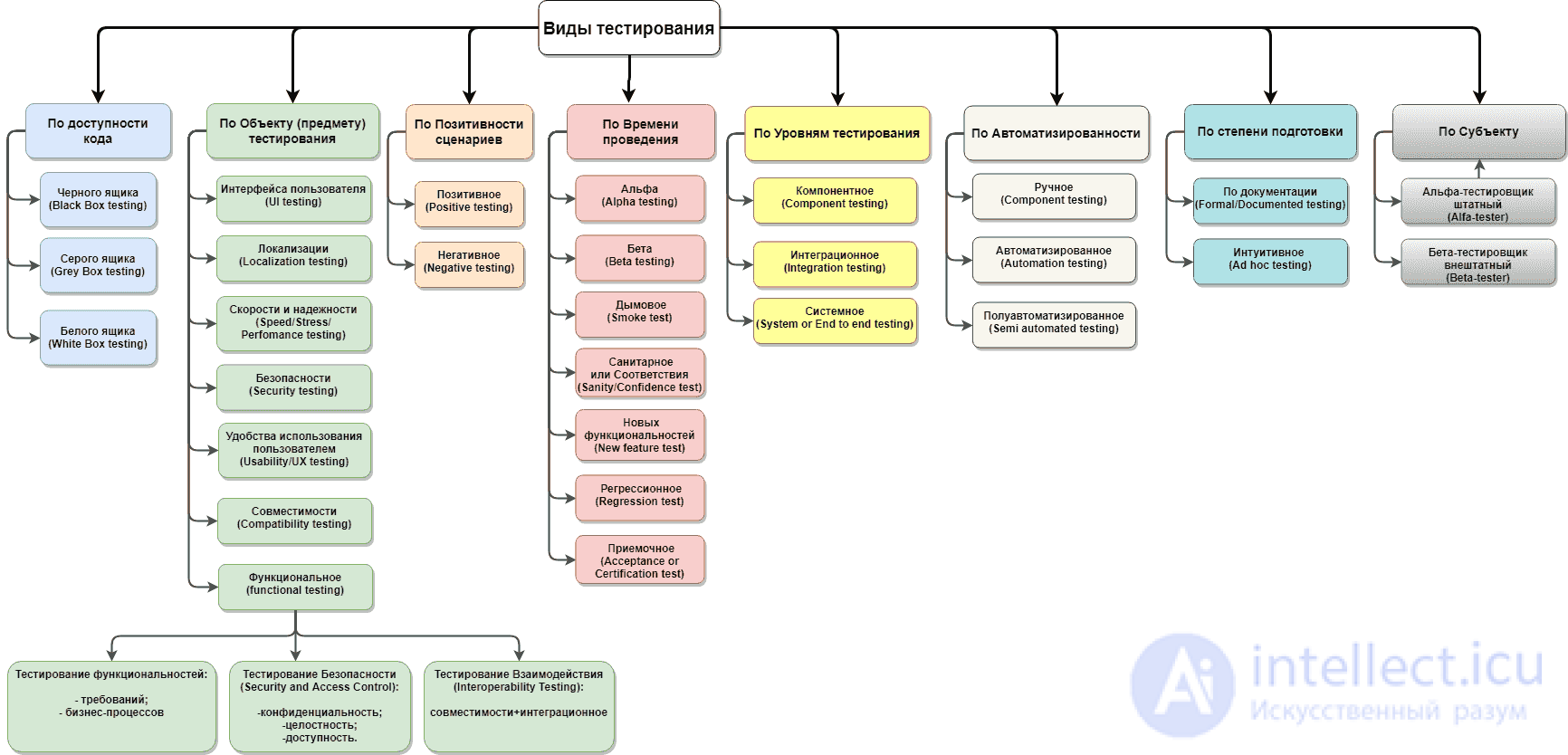

Classification of testing types and methods

There are several criteria by which testing types are usually classified. The following are typically distinguished:

By test object

• Functional testing
• Performance testing
  • Load testing
  • Stress testing
  • Stability testing
• Configuration testing
• Usability testing
• Security testing
• Localization testing
• Compatibility testing

By knowledge of the system's internal structure

• Black box testing
• White box testing
• Gray box testing

By degree of automation

• Manual testing
• Automated testing
• Semi-automated testing

By degree of isolation

• Component testing
• Integration testing
• System testing

By the timing of testing

• Alpha testing
  • Smoke testing
  • New feature testing
  • Confirmation testing
  • Regression testing
  • Acceptance testing
• Beta testing

By whether the scenarios are positive

• Positive testing
• Negative testing

By the degree of preparedness for testing

• Testing by documentation (formal testing)
• Intuitive testing (ad hoc testing)

TESTING CYCLE

The testing cycle (Testing Cycle) resembles a typical production cycle, usually going through several stages:

1. Test analysis - requirement analysis (Requirement analysis) and (optionally) requirements testing.
   Result: Requirements Traceability Matrix (Requirement Traceability Matrix, RTM), logged documentation defects and better-quality documentation for developers.
2. Planning (Test Management, Test Planning).
   Result: test plan (Test Plan) / testing strategy, effort estimation (Effort Estimation)
3. Test design (Test Design, Test Development).
   Result: a set of test cases (test cases) that need to be executed, test data (test data)
4. Execution (Test Execution). Testing methods are used (methods of testing).

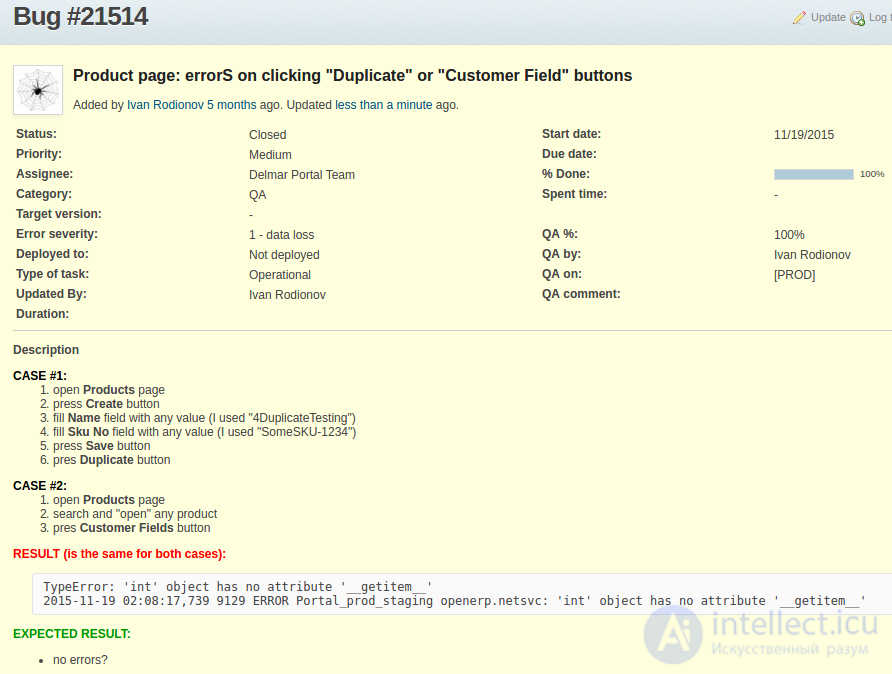

   Result: test report (test reporting), bug reports (bug report).
5. Analysis of test results (Test Result Analysis). Metrics are used (QA metrics).
   Result: conclusions for correcting errors in the planning and control of the testing/development process.

Types of Software Testing

All types of software testing, depending on the goals pursued, can be conventionally divided into the following groups:

1. Functional
2. Non-functional
3. Change-related

Next, we will try to describe in more detail each individual type of testing, its purpose and use in software testing.

Functional types of testing

Functional tests are based on functions and features, as well as interaction with other systems, and can be presented at all levels of testing: component or unit (Component/Unit testing), integration (Integration testing), system (System testing) and acceptance (Acceptance testing). Functional types of testing examine the external behavior of the system. Below are listed some of the most common types of functional tests:

• Functional testing
• Security and Access Control Testing
• Interoperability Testing

Non-functional types of testing

Non-functional testing describes the tests needed to determine software characteristics that can be measured by various quantities. In general, this is testing of "How" the system works. Below are listed the main types of non-functional tests:

• All types of performance testing:
  • Performance and Load Testing
  • Stress Testing
  • Stability / Reliability Testing
  • Volume Testing
• Installation Testing
• Usability Testing
• Failover and Recovery Testing
• Configuration Testing

Acceptance testing

• User Acceptance Testing (UAT)
• Alpha testing
• Beta testing

As a rule, this type of testing is carried out by the system's end users, however involving experienced testers will reduce the time needed to prepare for testing and will improve the quality and reliability of the tests performed.

User Acceptance Testing (UAT)

By ordering the service from IBS AppLine you reduce the labor costs of conducting testing, since, firstly, we take the organizational work upon ourselves, and secondly, incoming defects are filtered, clarified and passed on to developers with a detailed description, which significantly reduces the time and effort developers spend finding the cause of a defect and fixing it.

As part of alpha testing, our company solves the following tasks:

• preparing the testing schedule;
• organizing the testing participants;
• selecting and clarifying incoming remarks;
• registering defects in the bug-tracking system.

Beta testing

Beta testing is carried out after alpha testing and can be used as acceptance testing by external users. The beta version of the system is given to a group of users outside the development team, in order to reduce the number of defects. Sometimes the version is given to several teams, in order to get feedback from as many future users as possible.
Key advantages

• Getting feedback and suggestions from potential users of your product.
• Improving the quality of the testing performed within the given time frame, since we track and help resolve problems arising among the testing participants, as well as problems related to the test environment.

Main tasks

• Finding a group of potential users ready to test the system.
• Controlling, selecting and clarifying incoming defects and suggestions.
• Filing defects into the bug-tracking system.
• Preparing and providing interim and final reports on the testing results.

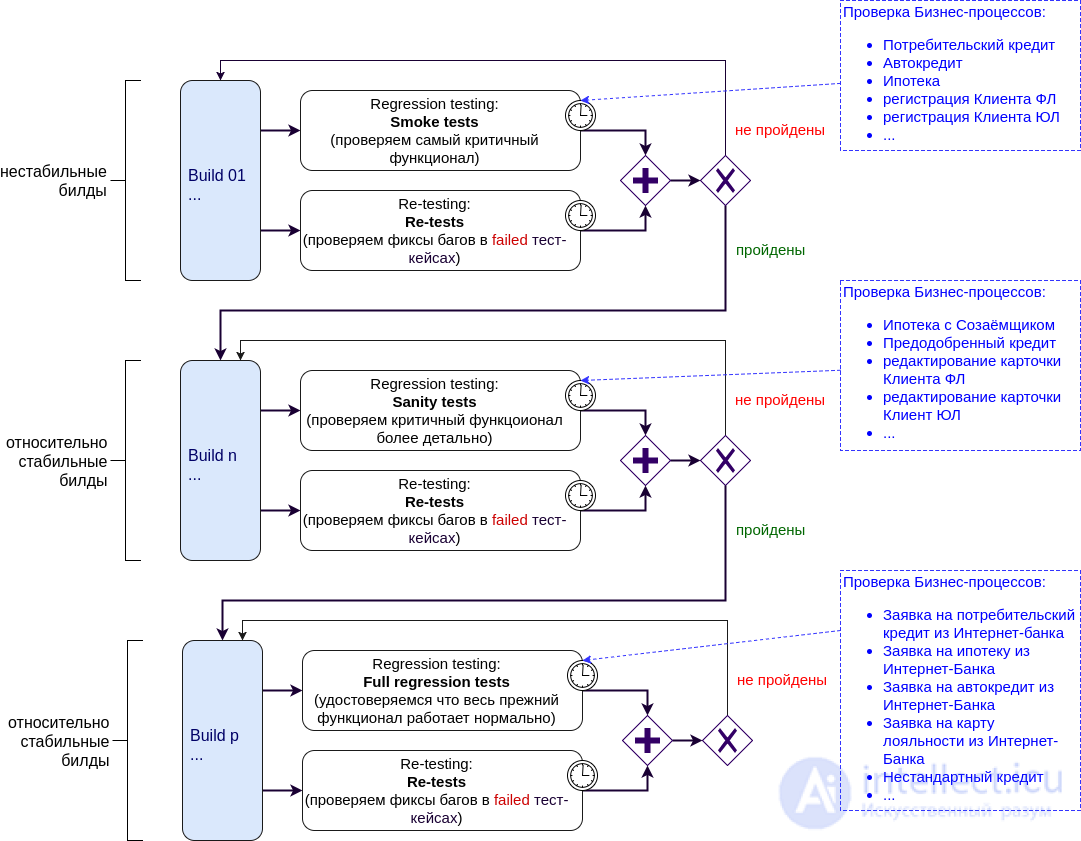

Change-related types of testing

After the necessary changes have been made, such as fixing a bug/defect, the software must be re-tested to confirm that the problem has actually been resolved. Listed below are the types of testing that need to be carried out after installing the software, to confirm that the application works or that the defect fix has been made correctly:

• Smoke Testing
• Regression Testing
• Build Verification Test
• Sanity Testing

• BlackBox, GreyBox and WhiteBox;
• Testing principles
• Testing levels
• Functional testing:
  • Depth of testing: Smoke, cover, full
  • Regression - what it is and how to write it?
• Non-functional testing:
  • GUI and Usability - user interface testing
  • Load, performance, stress testing
  • Security testing
• Testing products in different browsers and on different devices (cross-browser & cross-platform)
• Test design techniques: 5 main approaches
• The concept of Test Coverage
• Automation:
  • Goals and necessity.
  • Overview of tools.

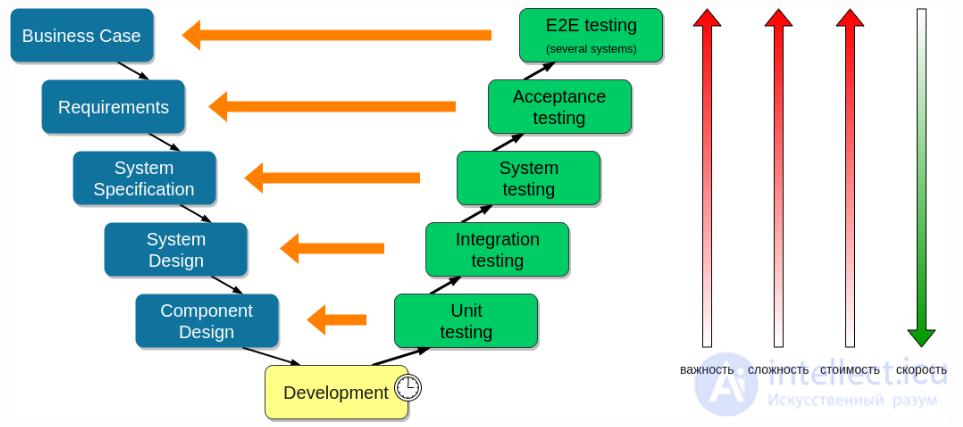

Levels of Software Testing

Testing at different levels is carried out throughout the entire life cycle of software development and maintenance. The testing level determines what the tests are performed on: an individual module, a group of modules, or the system as a whole. Carrying out testing at all levels of the system is the key to the successful implementation and delivery of the project.

Testing Levels

1. Component Testing or Unit Testing
2. Integration Testing
3. System Testing
4. Acceptance Testing

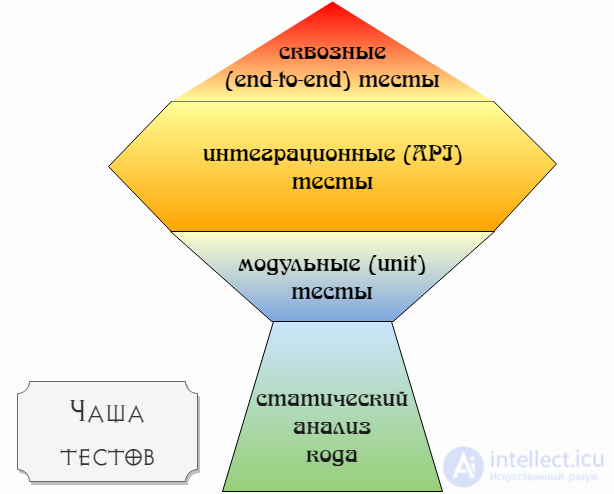

Testing cup

Unit testing

Unit testing (Unit testing) = testing a single unit of code (usually a single function or a single class in the case of OOP code) in an isolated environment. This means that:

• if the code uses some third-party classes, stub classes are substituted for them instead: mocks and stubs. Stub’s are intended to obtain the needed state of the object under test, while Mock’s are used to verify the expected behavior of the object under test.
• the code must not work with the network (and external servers), files, or the database (otherwise we are testing not just the function or class itself, but also the disk, the database, etc.)

Usually a unit test passes various input data to a function and checks that it returns the expected result. For example, if we have a function that checks whether a phone number is valid, we give it pre-prepared numbers and check that it identifies them correctly. If we have a function that solves a quadratic equation, we check that it returns the correct roots (for this we prepare in advance a list of equations with answers).
It is performed by developers, often using automated testing methods.

Integration testing

Integration testing = checking the connection between the modules (components) of the code, as well as the interaction with different parts of the system (the operating system, hardware, or connections between different systems). If we draw an analogy, for example with the testing of an aircraft engine, then unit tests are the testing of individual parts, valves, flaps, while integration testing is running the assembled engine on a test stand.
It is performed by developers, often using automated testing methods.

System testing

System testing (System testing) = the process of testing the system as a whole in order to verify that it meets the established Software Requirements Specification (SRS).
Make sure that the System is able to accept certain data from suppliers, process it, and pass the data on to consumers, all in the correct sequence and format. We are not concerned with the further fate of the data. The main thing is that our system works correctly in the correct environment.
In doing so, defects are identified such as: incorrect use of system resources, unforeseen combinations of user-level data, incompatibility with the environment, unforeseen use cases, missing or incorrect functionality, inconvenient usability, etc.
To minimize the risks associated with the specifics of the system's behavior in one environment or another, during testing it is recommended to use an environment as close as possible to the one the product will be installed in after release.
It is performed by testers using manual and automated methods.

API testing

API testing (API testing) = the process of testing the application's API in order to verify that the implementation of the external interfaces meets the established requirements.
API testing can be attributed to either integration testing or system testing, depending on what we consider to be the system under test (SUT, system under testing) within the scope of our task -- a separate service or some platform as a collection of services.

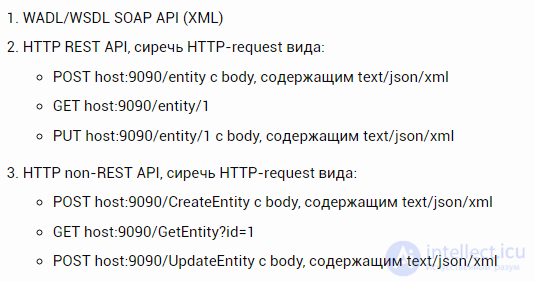

It may include testing of:

RPC interaction with the server, for example in the form of a java-call from the client library, see gRPC

CDC (consumer driven contract) testing for all the above-mentioned kinds of API, in the form of:

Tests of the clients of provider services. Usually a stub is used, which is automatically generated from the contract. This makes it possible to avoid deploying an environment consisting of Provider Services.

Tests for the API of provider services. They can also be generated from the contract.

It is performed by testers using manual and automated methods.

Tools for testing web APIs

Postman = a GUI tool for testing REST/SOAP. Supports creating scripts for auto-tests (Javascript).

SoapUI = a GUI tool for testing REST/SOAP. Supports creating test suites with scripts for automating testing (various programming languages).

cURL = a CLI tool for interacting with servers over protocols using URL syntax.

behat tests Behat is a testing framework for behavior-driven development, written in the PHP programming language.

Acceptance testing

Acceptance testing (Acceptance testing) or Acceptance and Handover Trials (AHT) - a formal testing process that verifies the system's compliance with Business/User requirements and is carried out for the purpose of: determining whether the system satisfies the acceptance criteria, and having a decision made by the customer or another authorized person on whether the application is accepted or not. It is performed on the basis of a set of typical test cases and scenarios developed from the requirements for the given application.
It is performed by testers using manual and automated methods.

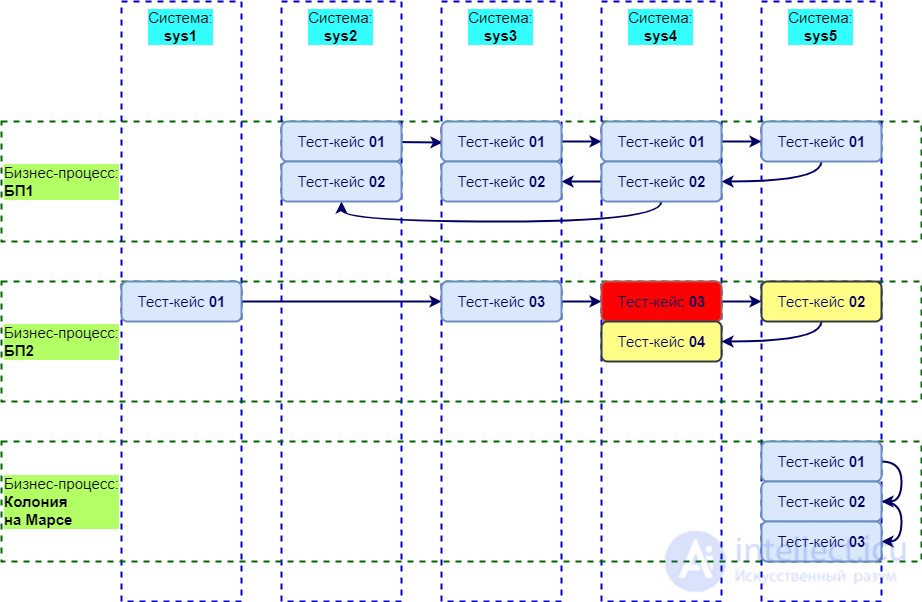

End-to-End testing

End-to-End testing (End-To-End, E2E or Chain testing) = checking not only our own environment, but all the interconnected systems through which the data received or sent by our system passes. This, in turn, means that we will need to combine several such "testing pyramids" with each other. E2E testing is not simply acceptance (user testing) that the customer will perform, it is building a bridge, taking into account all possible situations, along which the customer will walk and lead the users along in step.
It is performed by testers using manual and automated methods.
For end-to-end scenarios, the tests already developed earlier for each of the systems included in the chain (scenario) of the business process are, in all likelihood, used. All of a company's complete test suites can be represented as a sparse matrix, where the columns hold the tests for each system (for simplicity -- system-level ones), and the rows hold the business processes. That is, for one business process or another, tests covering the business process need to be selected/created, and the relationships need to be established. If there is no coverage, this is a reason to fill in the gaps in the test model, or to make sure that quality is ensured by other levels of testing (integration testing, unit testing, code review, and running it through analyzers).

Martin Fowler warns that writing and maintaining E2E tests is quite expensive, which means that:

• there should not be many of them
• the time it takes to run E2E tests should be measured in minutes, not hours
• E2E tests should correlate with the CJM
• if some external service is very often the cause of delays in executing an E2E scenario, it is recommended to exclude it by setting up a stub in its place
• you should try to make E2E tests independent of pre-prepared data, the absence or poor quality of which is often the cause of errors. If there are services (possibly among those being tested) that provide an API for creating entity objects, it should be used. If there is no such service, the necessary data should be imported at the database level.

TYPES OF TESTING

Main testing groups
functional group	non-functional group
Functional testing (positive / negative) Security and Access Control Testing	Performance and Load Testing Stress Testing Stability / Reliability Testing Endurance Testing Volume Testing Installation Testing Usability Testing Failover and Recovery Testing Configuration Testing Compatibility Testing
change-related testing (includes both functional and non-functional tests)
Smoke Testing Re-test Sanity Check Regression Testing

Functional tests are based on the functions and features, as well as the interaction with other systems, and can be presented at all levels of testing: component or unit (Component/Unit testing), integration (Integration testing), system (System testing) and acceptance (Acceptance testing). Functional types of testing examine the external behavior of the system.

Non-functional testing describes the tests needed to determine software characteristics that can be measured by various quantities. In general, this is testing of "How" the system works.

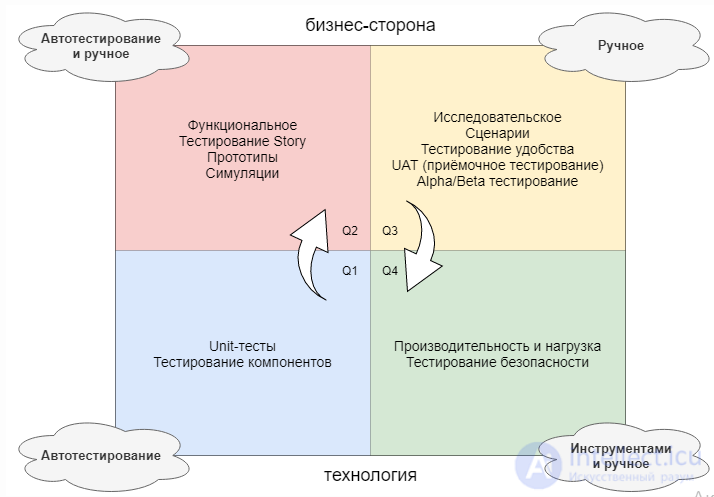

fig. Quadrants of the testing square

Functional testing

Functional testing examines predetermined behavior and is based on the analysis of the functional specifications of a component or the system as a whole.

Functional tests are based on the functions performed by the system, and can be carried out at all levels of testing (component, integration, system, acceptance). As a rule, these functions are described in the requirements, functional specifications, or in the form of system use cases (use cases).

Functional testing can be:

• "Positive" (positive testing) -- this is testing on data or scenarios that correspond to the normal (standard, expected) behavior of the system.
  The main goal of "positive" testing is to verify that the system can be used to do what it was created for.
• "Negative" (negative testing) -- this is testing on data or scenarios that correspond to abnormal behavior of the system under test - various error messages, exceptional situations, "out-of-range" states, and so on.
  The main goal of "negative" testing is to verify the system's resilience to various kinds of impacts, validate an invalid data set, and check the handling of exceptional situations (both in the implementation of the software algorithms themselves and in the business-rule logic).

Positive testing is far more important, but this does not mean that "negative" tests can be neglected.

Security testing (security and access control testing)

Security testing - is a testing strategy used to verify the security of the system, as well as to analyze the risks associated with ensuring a holistic approach to protecting the application from hacker attacks, viruses, and unauthorized access to confidential data.

Scanning for the presence of vulnerabilities (Vulnerability Scanning): Performed using special vulnerability-scanner programs.

Security Scanning: Includes identifying network and system flaws (weaknesses), and then provides solutions for reducing such risks. Scanning can be performed both manually and automatically.

Penetration Testing: simulates an attack by a malicious actor. This testing involves analyzing a specific system in order to check its potential vulnerability to external hacking attempts.

Risk Assessment: includes analysis of the security risks observed in the organization. Risks are classified as low, medium and high. This type of testing recommends methods for controlling and reducing risks.

Performance testing or load testing

Performance testing = automated testing that simulates the work of a certain number of users on some shared resource. The task of performance testing is to determine the scalability of the application under load, in the course of which the following take place:

• measuring the execution time of selected operations at certain intensities of performing these operations
• determining the number of users simultaneously working with the application
• determining the boundaries of acceptable performance as the load increases (as the intensity of performing these operations increases)
• investigating performance under high, limiting, stress loads

Stress testing = testing the application under extreme loads, determining its ability to handle a high level of traffic or data processing. The goal is to determine the application's breaking point.

The task of stability testing (stability) / reliability testing (reliability) - is to check the operability of the application during long (multi-hour) testing with an average level of load. The execution time of operations may play a secondary role in this type of testing. Here, what comes to the forefront is the absence of memory leaks, server restarts under load, and other aspects that specifically affect the stability of operation.

Endurance testing = making sure that the application can safely remain under high loads for a long period of time.

Volume testing = obtaining a performance assessment as the volume of data in the application's database increases.

Usability testing

Usability testing - is a testing method aimed at establishing the degree of ease of use, "learnability", understandability and attractiveness to users of the product being developed, in the context of specified conditions. [ISO 9126]

User Friendliness:

• control of and work with the system are organized in an obvious way, there is no need for special training;
• aesthetic layout and appearance of the content, colors, icons;
• presence of a help section;

Efficiency:

• how much time and how many steps will a user need to complete the application's core tasks, for example, posting news, registering, making a purchase, etc.? (less is better);
• universality of the window/page format in the application/website;

Accuracy:

• no grammatical or syntax errors, no outdated or incorrect data is displayed;
• no broken links;

Failover and recovery testing

Failover and Recovery Testing checks the product under test in terms of its ability to withstand and successfully recover from possible failures arising from software errors, hardware failures, or communication problems (for example, a network failure). The goal of this type of testing is to check the recovery systems (or systems duplicating the main functions), which, in the event of failures, will ensure the safety and integrity of the data of the product under test.
Failover and recovery testing is very important for systems operating on a "24x7" basis, for example online stores, ERP systems.

In most cases, the object of testing consists of highly probable operational problems, such as:

• power failure on the server machine;
• power failure on the client machine;
• incomplete data processing cycles (interruption of data filters, interruption of synchronization);
• declaring or entering impossible or erroneous elements into data arrays;
• failure of data storage media.

GUI testing

1. check the size, position and acceptance of letters and digits for all GUI elements. For example, verify that input is possible in all input fields
2. make sure that the graphical interface allows the full functionality of the application to be implemented
3. check that warning messages and error messages are displayed correctly
4. check the readability of the fonts used by the application, their alignment, and color
5. check the display and placement of images
6. check the placement of interface elements at various screen resolutions
7. ...

Compatibility testing

Hardware: compatibility with various hardware configurations.
Operating systems: compatibility with various operating systems: Windows, *nix, Mac OS, etc.
Software: compatibility with various software. For example, MS Word is compatible with MS Outlook, MS Excel, VBA, etc.
Network: Evaluating the system's performance on a network with changing parameters such as bandwidth, operating speed, and capacity. Checking whether the application can be used with various values of these parameters.
Browser: checking the website's compatibility with the most popular browsers: Firefox, Google Chrome, Internet Explorer, Opera, Safari.
Devices: compatibility with various devices: printers, scanners, wireless communication devices, USvoid devices.
Mobile devices: compatibility with mobile platforms such as Android, iOS, etc.
Software versions: compatibility with various software versions. For example, the compatibility of Microsoft Word with Windows 10, Windows 8, Windows 7, Windows XP, Windows XP SP2, etc.

Smoke testing

Smoke tests are run every time we receive a new build (version) of the project (system) for testing, considering it to be relatively unstable. We need to make sure that the critical functions of the Application/System work as expected. The idea of this type of testing is to identify serious problems as early as possible, and to reject this build (send it back for rework) at an early stage of testing, so as not to get bogged down in long and complex tests, thereby not wasting time on software that is already known to be defective.

Re-test

Checking that a defect previously found during testing has been successfully fixed.

Sanity check

It is used every time we get a relatively stable software build, to determine its operability in detail. In other words, this is where validation happens that the important parts of the system's functionality work according to the requirements at a low level.

Regression testing (regression testing)

Carried out to make sure that added/changed application functions and fixed defects have not had a negative effect on functionality that is already working successfully in Prod.
RT takes up the lion's share of the time, and it is exactly to reduce these costs that test automation exists.

An example explaining the difference between tests after changes

We have a web service with a user interface and a RESTful API. Being testers, we know:

• That it has 10 entry points, for simplicity, in our case located on a single IP
• all of them accept a GET request on input, returning some data in json format

Then a number of statements can be made about which types of tests need to be used at which point in time:

• By performing one simple GET request to one of these entry points. If a response in JSON format came back from the service, i.e. it did not return a 4xx or 5xx error or something unintelligible, then it did not "go up in smoke". At this point we can say that the "smoke" test has passed. To check that the UI works the same way, it is enough to simply open the page once in a browser.
• Sanity testing in this case will consist of executing a request to all 10 entry points of the API.
• A re-test in this example is a targeted check that, for example, an entry point in the API that was broken works as intended in the next build.
• Regression tests will consist of Smoke + Sanity + UI performed together in one batch:
  • Executing a request to all 10 entry points of the API, comparing the JSON received with the expected one, as well as the presence of the required data in it
  • checking that adding an 11th entry point has not broken, for example, password recovery.

An example of regression testing for a hypothetical bank

fig. example of regression testing

TESTING METHODS: MANUAL AND AUTO

BUG REPORT

A bug report (bug report) = a document describing a situation or a sequence of actions that led to incorrect behavior of the object under test, indicating the causes and the expected result.

You should strive to compose it so that from the title or short description of the bug (summary) the developer understands what the crux of the problem is, and having read the detailed description of the bug (description) they roughly imagine in which component, or even which part of it, they need to look for the error.

Significance/severity (severity) of errors
0	system down	server down	the system stops working
1	Data loss	data loss	Loss of user, operator, or system data
2	Loss of functionality	functional loss	Blocking of core functionality. May include non-functional problems, for example related to performance, that cause unacceptable delays in using functions
3	Security hole	security loss
4	Loss of functionality with a workaround present	functional loss but alternate path exists	Blocking of core functionality, but a reasonable workaround exists for the user
5	Partial loss of functionality	partial functionality loss	Blocking of the use of some non-essential functionality
6	Cosmetic error	cosmetic error	Significant shortcomings in the user interface or in the system's ability to respond to user requests

Testers must protect the quality of the system and the opinion users have of it. But they should not do this by acting as rivals of the programmers, raising complaints of a personal nature or in an unconstructive manner. It is preferable if we do this in a way that unites business realities with system development and maintenance.

Rules for formatting the title (subject) of a bug report

The structure of a clear task title:
<Where (page name)> : <Which element/function of the page> - <the essence of the error/task>

Catalog Editor: Copy - not all existing catalogs shown in "select catalog" combobox
or Catalog Library -> Duplicate Catalog - If 'Use audience' option is marked, 'Shared with' data must be copied to the new catalog>
these are good titles. Just to understand how big and urgent a problem is -- there is no need to open the issue itself.
"Organizer", "Catalog properties page" - for such task titles, a mere 400 years ago people were sent to the stake. Because you can't tell from it what the point is, "well, page, so what, what's the problem??".

Template for the "body" of a bug report

DO: ("ACTIONS", "STEPS TO REPRODUCE")
Indicate the sequence of actions, tell us exactly what you did to reach the state of the system in which you encountered the error

RESULT: ("RESULT:")
Describe the consequences of your actions, tell us what happened when the "point of no return" was reached and how the bug manifests itself

EXPECTED RESULT: ("EXPECTED RESULT:")
A description of the expected behavior of the system when the user goes through the steps indicated in "DO". The expected result must correspond to the customer's requirements described in the documentation, or to common sense. The developer must know what they need to do.

ADDITIONAL INFO: ("ADDITIONAL INFO:")
To make a good bug report excellent - use any opportunity to supplement it, such as:

• Add screenshots (marking important places on them, if necessary).
• Add the server log or the text of the error message (if this information is available).
• Add your own thoughts and assumptions about the bug encountered (briefly, if any).

Example of a bug report

See also

• Test-driven development TDD
• Problem-oriented design
• Software quality
• Error tracking system
• Software testing outsourcing
• Fault injection
• tester
• Quality management
• Software testing
• Software metric
• Software testing antipatterns
• [[b7013]]
• bug
• [[b5192]]
• [[b5191]]
• [[b6099]]

See also

• Technical debt - debt coding - a problem arising from the presence in the present of the fact of unfinished work in the past
• Mobile testing: features and stages. Mobile application architecture
• Web testing: features, kinds and sequence
• Component (Unit) Testing
